12000-15000BPH Bottle Blow Molding Machine

  • 12000-15000BPH Bottle Blow Molding Machine
  • 12000-15000BPH Bottle Blow Molding Machine
  • 12000-15000BPH Bottle Blow Molding Machine
  • 12000-15000BPH Bottle Blow Molding Machine

12000-15000BPH Bottle Blow Molding Machine

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 50 Days
    Packaging: Film Packing
    Productivity: 12000-15000BPH
    Brand: Winiber
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 5 Set/Month
    HS Code: 8477309000
    Port: NINGBO,SHANGHAI

Basic Info

Model No.: AL-CP8M

Product Description

Product Description

AL Series bottle blow molding machine is a completely new generation of linear blowing machine, distinguished by its high speed, low power and low compressed air consumption, featured by the excellent structure design, small space occupation, less noise and high stability. Meanwhile conforms to national beverage sanitary standards. This high speed bottle blowing machine represent the highest level of national linear blowing machines. It is the ideal bottle making equipment for medium and large enterprises.

Bottle Blow Molding Machine Feature

Feeding system

  • Continous and high speed preform feeding system.
  • Multiple protection device for precise preform feeding.

Transfer and heating system

  • Horizontal rotation transfer system to eliminate preform flipping.
  • Compact preform-chain base design for efficient heating and reduce energy consumption
  • Optimized exhausting and preform surface cooling system.
  • Infrared heat sensor for preform temperature monitoring
  • Heating tunnel can inverse when changing the lamps

Transfer and taking preform system

  • Servo motor drive preform transfer system for quick transfer and precise preform locating.

Blowing and clamping system

  • Servo motor drive system with synchronized base blow mold for fast response operation.
  • Precision electromagnetic valves for fast responding time and high production.

Control system

  • Touch panel control system for simple operation.
  • 10 inch touch screen with 64K colors.

Others

  • All electric mechanism to ensure high-speed operation and precise locating.
  • With quick mould change design.
  • Low energy consumption, low wear, low pollution.

Technical Paramater

Model

UNIT

AL-CP6

AL-CP7

AL-CP8M

AL-CP8N

AL-CP9S

CONTAINER

Number of Cavity

PCS

6

7

8

8

9

Max. Capacity

L

2.5

1.5

1

1

0.6

Max. Neck Diameter

mm

30

30

30

38

30

Max. Body Diameter

mm

110

95

80

80

65

Max. Bottle Height

mm

350

350

300

300

250

Theoretical Output

B.P.H

10000

12000

14000

14000

15000

MOLDING

Spindle Chain Pitch

mm

38.1

38.1

38.1

50.8

38.1

Cavity Pitch

mm

120

105

90

90

76.2

ELECTRICAL

Max. Heating Power

KW

100

80

80

80

60

Servo Motor Power

KW

14

14

14

14

14

Other Motor Power

KW

4.8

4.8

4.8

4.8

4.8

Total Power

KW

118.8

98.8

98.8

98.8

78.8

Voltage Frequency

V/HZ

380V+/-10% 50HZ/220V+/-10% 60HZ

AIR SYSTEM

Blowing Pressure

Bar

35

35

35

35

35

High Pressure consuming

L/Min

15000

12000

9000

9000

8000

WATER CHILLER

Pressure

Mpa

3-5

3-5

3-5

3-5

3-5

Temperature Range

10-12

10-12

10-12

10-12

10-12

Flow Rate

L/Min

50

50

50

50

50

Cooling capacity

HP

5

5

5

5

5

MACHINE DIMENSION

Size(L*W*H)

M

5.2*1.5*2.3

5.2*1.5*2.4

5.2*1.5*2.4

5.2*1.5*2.5

5.2*1.5*2.5

Weight

KG

5600

5600

5600

5600

5600

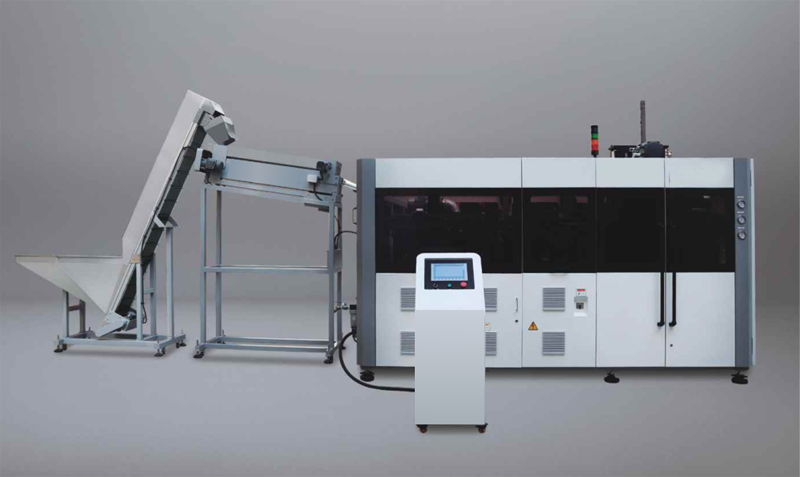

Detailed Photos of Bottle Blow Molding Machine

Bottle Blow Molding Machine


Plastic Bottle Manufacturing Machine Price


Fully Automatic PET Bottle Blowing Machine


PET Bottle Moulding Machine


PET Bottle Moulding Machine



About us

We have more than 20 years knowledge and experience on PET Water/juice/carbonated drinks production line. Our exporting product includes: Injection molding machine, PET preform mould, stretch blow molding machine, Water treatment system, Filling machine and Packaging machine etc.

Faq 1

Q: What is the warranty if we buy your machines?

A: We offer the high quality machines with 1 year guarantee start from the machine reach to your factory. Also your share the lifelong technical support.


Q: How about the spare parts?

A: We will send one year enough spare parts together with machines for your stock. During the warranty time, if some spare parts broke without human problem, we will send free for you.


Q: How to install my machines when it arrives? What is the cost?

A: We will send our engineer to your factory to install the machines and train your engineers how to operate and maintain the machines. Customer pay for visa, round-trip tickets, room and accommodation, also USD80/day/ person(engineer salary).


Q: How long time for installation?

A: According to the machine you order, usually we will send one or two engineer, it takes about 7to 20days.


Q: When can I get my machine after I paid?

A: Usually the production time is around 25-60 days. The exactly will be decided by which machine u order.
