Granule Inclined Bucket Conveyor

Granule Inclined Bucket Conveyor

    Min. Order: 1 Set/Sets
    Packaging: Wooden case
    Brand: Durzerd
    Transportation: Ocean,Land
    Place of Origin: China
    Port: SHANGHAI PORT

Product Description

Brief Introduction:

Inclined bucket conveyor is a vibrating feeder suitable for the food industry, and its key component is an electric vibrator. The incoming granule fall from the vibrator plate and move to the bucket under the action of the vibrator. Inclined bucket conveyor is a kind of material handling equipment. The conveyor is mainly composed of conveying part, driving device and tension device. Vertical form fill seal machine is usually matched with Inclined bucket conveyor to pack granular materials. The same applies to automatic baler packing machine and rotary packaging machine.

Features:

*304 Stainless Steel sanitary construction and food grade plastic

*Labor saving conveyor that allow for large volumes of materials movement

*Reliable and dependable with low energy requirements

*Resistant to corrosion and abrasion

*Custom design available

*Receive materials and deliver them to weigher

*Require low maintenance

*Easy clean-up

Application:This lifting conveyor is designed for conveying and lifting the particle&granule item that is with good fluidity such as wheat, corn, peanut, seed, sugar, rice ect. The machine is fully stainless steel and with reliable performance.

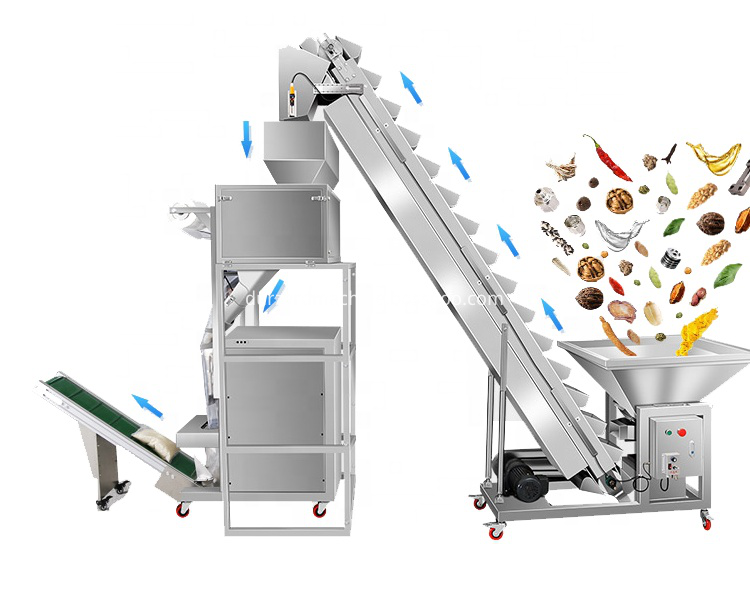

Inclined Bucket Conveyor


Inclined Bucket Conveyor Detailed description

Bucket Conveyor Belt


Bucket Elevator Belt


1. The reducer gear: worm type, its advantage is running evenly, lower noise, also is reliable.

2.The electric vibrator part, it is available adjustable. Machine's portable control box: the vibration amplitude is variable to control the conveying capacity.

3.The bolt and gasket is the Thrust Washer: well tighted and prevent lossen for a long term.

4.The roller and PE belt: comply to food safety grade

Technical Parameters

Model

1.65

2

2.7

3

Capacity

3 m³

5 m³

6m³

8m³

Speed

20-140

20-140

20-140

20-140

Inverter

Select

Select

Select

Select

Pipe diameter

114

141

159

168

Motor

0.77kw

1.57kw

2.26kw

3.06kw

Weight

130kg

170kg

220kg

220kg

Hopper volume

200L

200L

200L

200L
